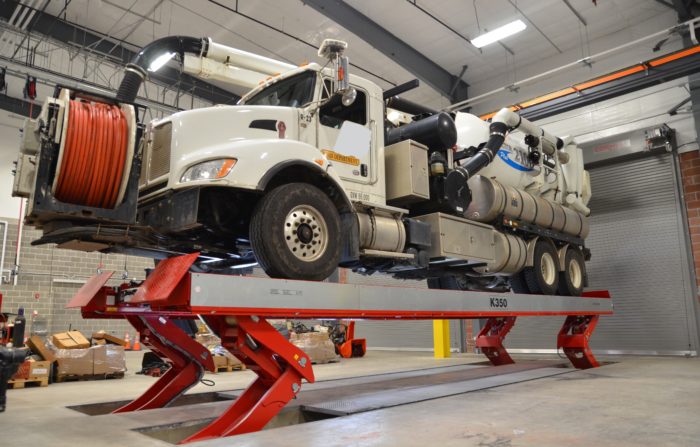

OMER Pantograph KAR Lift

OMER Pantograph Lift 31,000lb ~ 99,000lb Capacity:

OMER’s unique pantograph heavy-duty KAR Lifts are available in ten models and are suitable for lifting the widest range of commercial vehicles. OMER’s KAR line is designed with innovation in mind being the only vertical rise and sensor-less heavy duty lift available in the market. OMER’s KAR Lifts are available in surface, recessed floor or flush-mounted installations. Their design also has different patents, including a patent for the ASO energy-absorbing system that helps to eliminate most of the mechanical stress on the lift structure and provides one of the longest life cycles available in the industry. In addition, the OMER’s family of KAR Lifts also includes a huge variety of accessories making the lifts customizable for unique jobs. All of our heavy duty lifts are available in Wash Bay, Alignment and Explosion-Proof Area version. Available in capacities ranging between 31,000 lbs. and 99,000 lbs.

• Capacities: 31,000 lbs. to 99,000 lbs.
• Length: 20 ft. to 48 ft.
• Collapsed Height: 2 in. to 15.2 in.
• Raised Height: 79 in. to 82.6 in.

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads

OMER KAR Lift Features:

• The KAR lift is an electro-hydraulic vertical rising pantograph.
• Provides side to side and front to back access without any obstructions granting more productive workspace around the lift than any other platform lift.
• It is ideal for maintenance work on heavier and longer buses and trucks.
• The strong and compressed runway design provides a stable platform that is synonymous of safety and reliability.
• KAR series lifts have a model to fit every lifting application from 31,000 lb. to 99,000 lb. Runways are available from 20’ to 48’.
• Specific application: “Rough Service Wash Bay”, Mining, Military, Waste Management, Street Rail, and more.
• OMER created the patented ASO energy-absorbing system that is located at the center of each leg hinge. This closed hydraulic/mechanical control ensures that the runways remain leveled regardless of how the lift is loaded.
• The KAR lift uses fixed hinges to provide smooth even lifting, opposed to “Y” style lifts that must slide at the front base plates and under the rear runways to achieve the same result.
• The KAR vertical rise lift offers a unique heavy duty lifting system that does not require any electronic sensors on the lift. It is equipped with low voltage sensors and a new “volumetric” hydraulic/mechanical control system to prevent any service issue in harsh environments or wash bays, particularly when flush mounted.
• There are four lifting cylinders mounted vertically in the control console standing side by side that are all linked together with a large torsion bar. The cylinders have a fluid displacement design with oil above and below each piston. Once bled, the closed loop system responds immediately to any increased pressure resulting from an uneven load.
• This pantograph lift is equipped with premium Siemens electrical components and Marzocchi hydraulic pumps. Most hydraulic and pneumatic components are manufactured and tested by OMER to insure the highest quality.

The OMER’s family of Kar Lifts is also equipped with numerous safety components to ensure maximum safety of operators and vehicles: mechanical locks on each lifting cylinder, burst valve on each lifting slave cylinder, 5 max. overpressure valves, photo sensors for runways leveling control, acoustic warning and by-pass key when lift reaches 20 in. from collapsed position, low voltage controls, and dead man control.

• Hot-Dipped Galvanization for outdoor or wash-bay use
• Waterproof galvanized cover for control unit for outdoor installation
• Non-standard power supply 208V-230V-460V-575V
• Hand pump for emergency descent
• Low approach ramps
• Optional Flush Mount, Drive Through or Service
• Air operated and stainless steel turning plates
• Extended length runway
• Rolling Jacks
• Air kit
• Light kit
• Winter kit
• Automatic pit covering platforms for flush mount version
