CR18

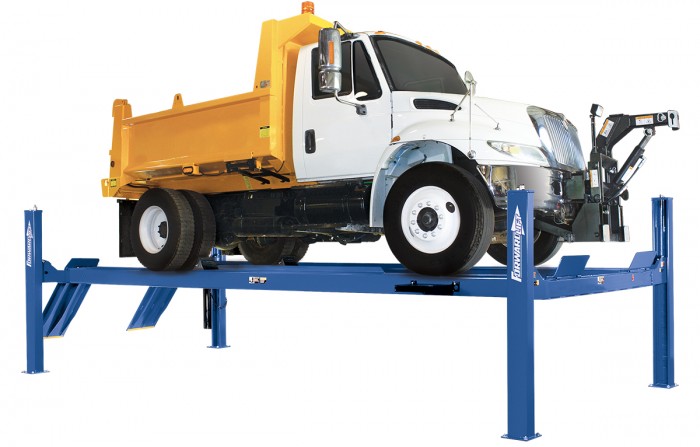

CR18 Four-Post Lift features 18,000 lbs. capacity heavy duty for post lift.

Additional Features:

  • Self chocking approach ramps in the rear
  • Single point latch release system
  • Multi-position lock components
  • Non-skid surface on runways
  • All hydraulics and mechanical lifting components concealed under runway
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications CR18
Capacity 18,000 (8165 kg)
Maximum Wheelbase 194″/230″
Lifting Height 68″ (1727mm)
Overall Length 22′-11-3/16″/25′-11-3/16″
Overall Width 11′-5-3/4″ (3499mm)
Width Inside Columns 121″-1/2″ (3086mm)
Length Between Columns 212″/248″
Overall Height 6′-5-3/4″ (1975mm)
Runway Width 22″ (559mm)
Runway Height 7-1/2″ (191mm)
Width Between Runways 43″ – 46″ (1092mm – 1168mm)
Rise Time* 105 seconds
Voltage* 208/230v
Motor 2HP
Minimum Bay Size 16′ X 27′
* single phase standard; 3-phase available at additional cost
