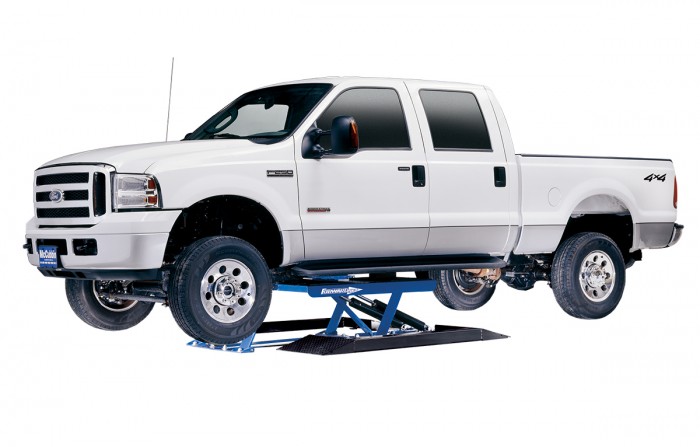

TL10 Low-Rise Lift Features low-rise lifts such as the Forward 10,000 lbs. TL10 are the ideal choice for shops, businesses, or home owners looking for a lift that’ll fit their low ceilings. Have a little extra space in a smaller bay? This is the economical choice for tire rotation, seasonal business, or an extra brake job here or there. Need to lift the vehicle off the floor to work on lower body panels, this is the lift. Drive over ramps and rubber blocks included for a number of lifting applications. Large lifting surface area means Forward thinkers lifting options are only limited by their imaginations.

Additional Features:

  • ALI/ETL Certified
  • Drive-over ramps and side rails provide the width to support wider vehicles while approaching and exiting the lift
  • Dual lifting cylinders provide the power required to lift a 10,000 lbs. vehicle
  • Comes with four 3-position adapters, four 3″ rubber blocks and four 1-1/2″ rubber blocks for added height
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications TL10
Capacity 10,000 lbs. (4536kg)
Length Overall 90-1/2″ (2299mm)
Width Overall 78-1/2″ (1994mm)
Width Between Platforms 22-3/4″ (578mm)
Length of Platforms 51-1/4″ (1301mm)
Length of Pad 17″ (7239mm)
Outside Width of Platforms 70-3/4″ (432mm)
Horizontal Movement (during rise) 16″ (406mm)
Collapsed Heigh 4″ (102mm)
Locking Leg Heights 13-3/8″ (340mm), 17-3/8″ (441mm), 21-3/8″ (543mm)
Voltage* 115v
Time of Full Rise 40 seconds
Rise High Step 30-5/16″ (770mm)
Rise Mid Step 28-5/16″ (719mm)
Rise Low Step 26-5/16″ (668mm)
Rise Tall Pad 24-3/4″ (627mm)
Rise Short Pad 23-1/4″ (591mm)
