R12

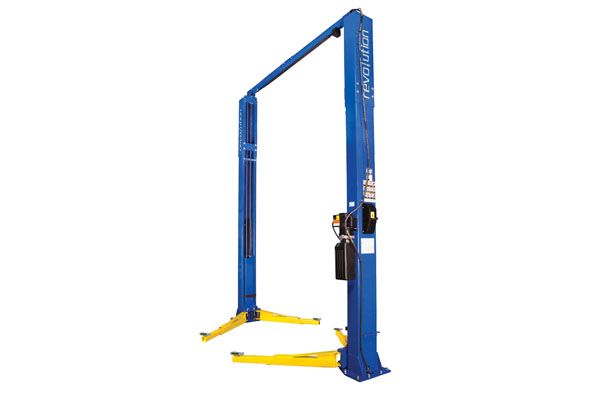

The Revolution Lift R12 is a commercial grade 12,000 lbs. capacity 2 post lift. It features low-profile, oversized pads with extensions to raise most vehicles on the road today. The R12 includes four (each) adapter extensions at 3.5” and 5” and column storage bracket.

  • 12,000 lbs. capacity for raising most passenger cars, trucks and vans
  • 2-stage front and rear arms
  • Two full-stroke cylinders with overhead cable for equalization
  • Spring operated arm restraints, disengage at floor level
  • Adjustable overhead heights available (hose and cable kit required)
  • Adjustable width and drive-thru settings
  • Padded overhead switch bar
  • Single Point lock release
  • Large frame-engaging swivel adapters with extra height extensions are standard
  • Durable powder coat finish
  • ALI Certified
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications R12


Capacity 12,000 lbs. (5443kg)


Maximum Rise 77-1/2” (1968mm) with 5” adapter extension


Adjustable Overall Height Options 166” (4216mm) Standard Height

178” (4521mm) Extended Max. Height*

154” (3912mm) LH1

143” (3632mm) DP


Overall Width 140” or optional

146” (3556 / 3708mm)


Drive Through Clearance 102-3/4” or optional

108-3/4” (2609 / 2762mm)


Overhead Switch Height Options 160-1/8” (4067mm) Standard

172-1/8” (4524mm) Extended*

148-1/8” (3762mm) LH1

137-1/8” (3483mm) DP
Front Reach (Min./Max.) 35”/ 54” (889 / 1372mm)


Rear Reach (Min./Max.) 35”/ 54” (889 / 1372mm)


Min./Max. Adapter Height 4-3/4” (120) w/ no adapter extension

9-3/4” (248mm) w/ 5” adapter extension


Width Inside Column 120-7/8” (3070mm) Standard

114-7/8” (2918) Optional


Voltage/Amps 208/230, 12 amps; 208/230, 16 amps


Motor/Phase** 1ph**/2HP/50Hz; 1ph**/2HP/60Hz


Ceiling Height Required 168” (4267mm)
