R10

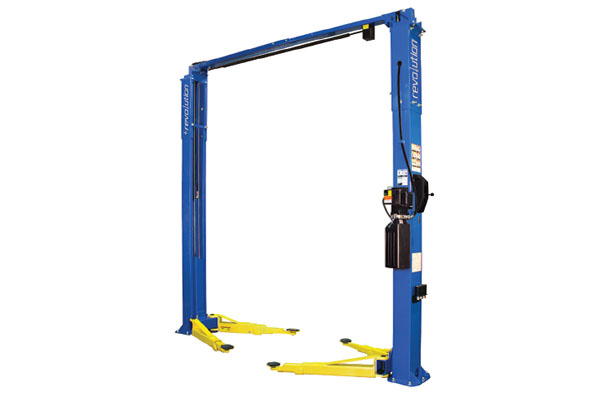

The Revolution Lift R10 is a commercial grade 10,000 lbs. capacity 2 post lift. It features low-profile oversized pads with extensions to raise most vehicles on the road today. Includes four (each) adapter extensions at 3.5” and 5” and (1) column storage bracket

  • 3-Stage front and 2-stage rear arms enable greater pickup point access
  • Direct pull lifting technology – full stroke hydraulic cylinders in each column
  • Top mounted pull design cylinder protects piston inside of carriage
  • Overhead cable for equalization
  • Spring operated arm restraints, disengage at floor level
  • Padded overhead switch bar
  • Single point lock release
  • Large rubber-padded swivel adapters with extra height extensions are stanard
  • Two full-stroke cylinders with overhead cable for equalization
  • ALI Certified





Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications R10

Capacity 10,000 lbs. (4535kg)
Rise 76 – 1/8” (1933mm)



Overall Height 143” (3632mm)



Overall Width 131” or optional 137” (3327-4380mm)



Drive Through Clearance 99” or optional 105” (2515-2667mm)



Overhead Switch Height 137-1/4” (3486mm)



Front Reach (Min./Max.) 24-1/2” / 44-3/8” (621mm /1127mm)



Rear Reach (Min./Max.) 36” / 58” (914mm /1473mm)



Min./Max. Adapter Height 3-5/8” (219mm) w/ no adapter extension

8-5/8” (792mm) w/ 5” adapter extension



Width Inside Column 109” or (optional 115” (2769mm/2921mm)



Voltage/Amps 208/230, 15 amps; 208/230, 16 amps



Motor/Phase* 1ph/2HP/50Hz; 1ph/2HP/60Hz



Ceiling Height Required 144” (3658mm)
