OIL FILTER CRUSHERS

husky-logo

Oil Filter Crushers reduce filters by 75% or the original size. They also remove 95% of the free-flowing oil so it can be recycled. The Crusher will not operate if safety door is opened. All models include a Lifetime warranty on housing, one year limited on all other parts. Truck and automotive filter crusher stands are available.

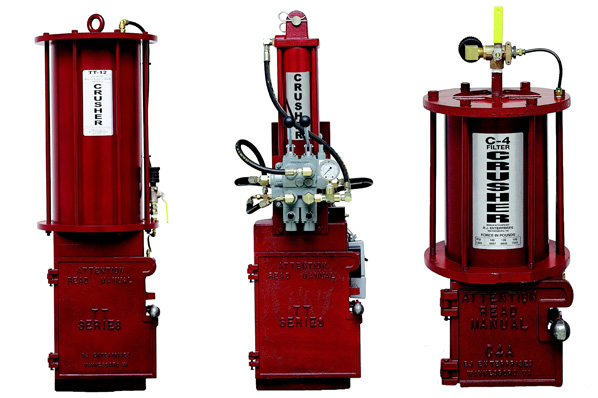

• Model C-4 Pneumatic Oil Filter Crusher (For Automobile Filters)
• Model C-6 Pneumatic Oil Filter Crusher (For Automobile Filters)
• Model TT-12 Pneumatic Oil Filter Crusher (For Tractor Trailer & Truck Filters)
• Model TT-25 Electric Hydraulic Oil Filter Crusher (For Tractor Trailer & Truck Filters)

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads

Model C-4:

Crushing chamber accepts filters 7½” tall x 5″ diameter.
Only one moving part, a 1½” shaft.
5 tons crushing force.
Cycle time: 5 seconds.
Air requirement – 125 to 175 PSI.
Air regulator not needed.
Oiler and lubricator not needed.
All parts in contact with air are rust proof.
Size: 26″ high, 11″ wide, 11″ deep.
Wall mounting brackets included.
12″ Flexible drain hose included.
Crusher weight 130 lbs. (Shipping weight 146 lbs. Shipped UPS.)

Model C-6:

Large crushing chamber: accepts filters up to 10″ tall x 7″ diameter.
Only one moving part, a 2″ shaft.
7 tons crushing force.
Cycle time: 27 seconds.
Air requirement – 125 to 175 PSI.
Air regulator not needed.
Oiler and lubricator not needed.
All parts in contact with air are rust proof.
12″ Flexible drain hose included.
Overall weight on stand 170 lbs. (Shipping weight 182 lbs. Trucked on pallet.)



Model TT-12:

Only one moving part, a 2″ shaft.
Cycle time: 23 seconds.
Air requirement – 125 to 175 PSI.
Air regulator not needed.
Oiler and lubricator not needed.
All parts in contact with air are rust proof.
Size: 51″ high, 18″ wide, 17″ deep.
Crusher weight 358 lbs. With stand 470 lbs.(Shipping weight 530 lbs. Trucked on pallet.)

Model TT-25:

Large crushing chamber: accepts filters up to 16″ tall x 9″ diameter.
Automatic crushing cycle.
Cycle time: 1 minute.
Pump: 1 Phase/ 230V/60Hz or 1 Phase 220V/50Hz.
Overall size on optional stand: 87″ high, 23″ wide, 31″ deep.
Size: 50″ high, 18″ wide, 31″ deep.
Crusher weight 404 lbs. With stand 516 lbs. (Shipping weight 576 lbs. Trucked on pallet.)


Filter Crusher Stands:

Model 7550

Industrial grade steel.
Drain shelf for storing filters.
2″ NPT drain for piping to other storage vessels.
Accommodates a 30-gallon drum.
Can be used with most filter crushers manufactured by Husky BJE.
Vibration pads and provisions for securing to the floor.


Model 7590

Designed for use with C-4 and C-6 oil filter crushers.
Industrial grade steel.
Vibration pads and provisions for securing to the floor.
