Nussbaum 2-Post Lift SPL8 Lo-Pro

Nussbaum 2-Post Lift 8,000lb Capacity

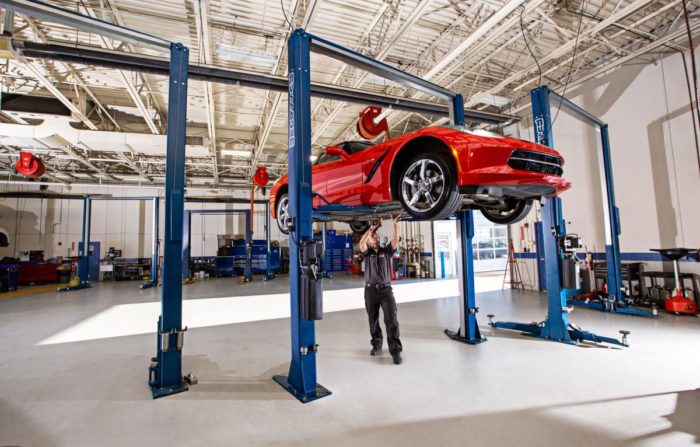

The SPL 8 LO-PRO is a hydraulic asymmetric two post lift with a lifting capacity of 8,000 pounds and low profile arms. This two post lift features a powerful 3.5 hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance. The Nussbaum low profile arms for the SPL 8 LO-PRO are specially designed to reach under lowered chassis. They access hard-to-reach lift points with ease, making it safe and simple to service more vehicle types.

Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads

SPL8 LO-PRO 2-POST LIFT FEATURES:

  • Narrow bay setting at 124 ″ allows the most efficient use of bay space in the industry without losing drive through width
  •  Highest lifting height on the market at 83″ with options for 12ft ceiling available
  • Fast lifting and lowering times
  • Variable lowering speed with manual control lever
  • Mechanical security locks
  • Hard-chrome cylinder guarantees extreme long-life cycle
  • Productive coverings for column cylinders provide safer operation and clean shop appearance
  • Asymmetrical two post vehicle lifting
  • Low maintenance and almost wear-free cylinder
  • Designed for short and long wheelbase vehicles

Tech Spec:

  • Capacity: 8,000 lb
  • Pick up pad height min: 3 inch
  • Front arms extension min-max: 23.2 – 34 inch
  • Rear arm extension min-max: 33 – 54.3 inch
  • Inside column width: 105 inch
  • Lifting height: 73.5 inch
  • Overall width min: 120 – 124 inch
  • Drive-through width min: 94.75 inch
  • Total height min: 143 inch
  • Power supply (V/ph): 208/230 / 1 ph
  • Motor power: 3.5 hp
