Nussbaum 2-Post Lift SPL10

Nussbaum 2-Post Lift 10,000lb Capacity:

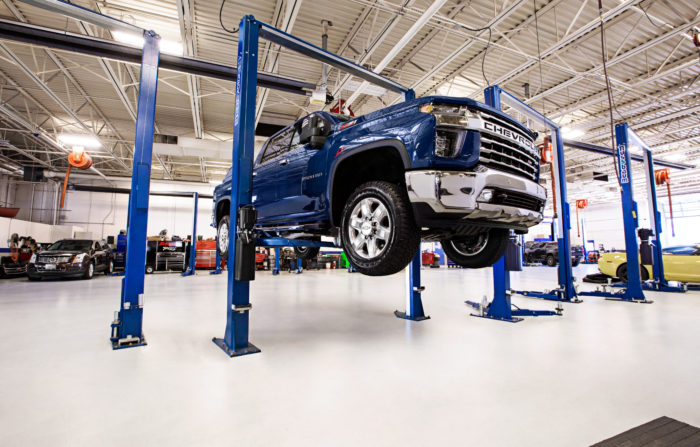

SPL 10 3 Stage is an ALI Certified hydraulic asymmetric two post lift with a lifting capacity of 10,000 pounds and 3-stage arms. This two post lift features a powerful 3.5 hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance.

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads

SPL 10 3 Stage 2-Post Lift Features:

  • 3-Stage arm design enables you to position vehicle doors in front of or behind columns to avoid door damage and provide you with added reach
  • Narrow bay setting at 124 ″ allows the most efficient use of bay space in the industry without losing drive through width
  • Fast lifting and lowering times9
  • Variable lowering speed with manual control lever
  • Mechanical security locks
  • Hard-chrome cylinder guarantees extreme long-life cycle
  • Productive coverings for column cylinders provide safer operation and clean shop appearance
  • Asymmetrical two post vehicle lifting
  • Low maintenance and almost wear-free cylinder
  • Designed for short and long wheelbase vehicles

Tech Spec:

• Capacity: 10,000 lb
• Pick up pad height min: 5 inch
• Front arms extension min-max: 21.5 – 43.5 inch
• Rear arm extension min-max: 39.5 – 59 inch
• Inside column width: 105 inch
• Lifting height: 73.5 inch
• Overall width min: 120 – 124 inch
• Drive-through width min: 94.75 inch
• Total height min: 143 inch
• Power supply (V/ph): 208/230 / 1 ph
• Motor power: 3.5 hp
