MID-RISE

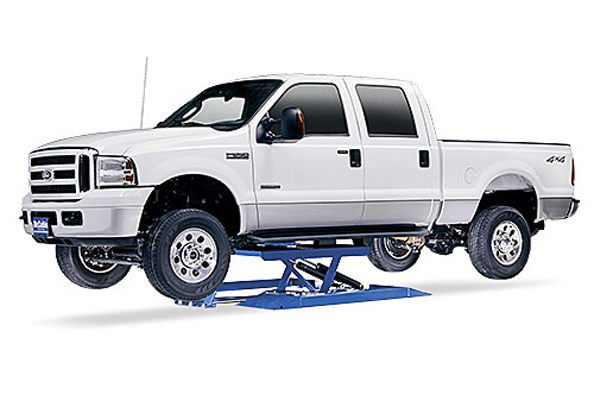

The VLXS10 is your solution for quick service operation on today’s passenger cars and trucks up to 10,000 lbs. Tire and brake work can now be performed on a wider variety of vehicles, thanks to the lift’s pads, adapters, wider drive-over capability, and increased lifting capacity.

Keep Your Bays Moving With Our Low Rise Lift!

  • Driver-over ramps and side rails support wider vehicles on approach
  • Dual lifting cylinders for smooth lifting
  • (4) heat resistant pads
  • 10,000 lbs. capacity
  • (4) 1 1/2″ rubber blocks
  • (4) three-position adapters
  • ALI Gold Certified (VLXS10000)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications VLXS10
Rise High Step/Tall Pad 30 5/16”
Rise Mid Step 28 1/16”
Rise Low Step 26 1/16”
Rise Short Pad 23 1/4”
Rise Flat 21 3/4”
Length Overall 90 1/2″
Width Overall 78 1/2″
Width Between Platforms 22 3/4″
Length of Platform 51 1/4″
Length of Pad 17″
Outside Width Of Platforms 70 3/4″
Horizontal Movement (during rise) 16″
Collapsed Height 4″
Locking Leg Heights 13 3/8″ – 17 3/8″ – 21 3/8″
Lifting Capacity 10,000 lbs.
Voltage Single Phase 115v
Time of Full Rise 40 seconds
