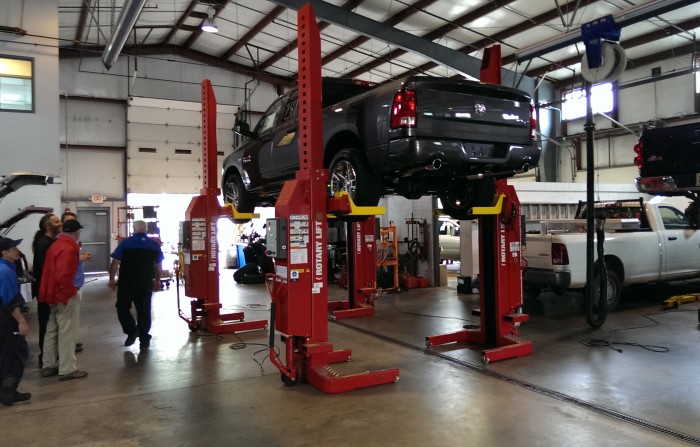

Rotary’s MACH13 mobile column lift give you the option of not being tied to a bay. Get the job done where ever you have the space. Our easy to use design give your technician the control from any column. Our forklift pockets provide a convenient way to relocate columns within your shop. Included with every lift, they are clearly labeled for easy handling. Easy to move adjustable forks improve set up time without the need for reducer sleeves. Adjustment range is 6.3″ to 23.6″ to accommodate approximate tire sizes 9″ to 24″.
| Specification | MCH213 | MCH413 | MCH613 | MCH813 |
| Column Config. | 2 | 4 | 6 | 8 |
| Capacity | 12,000 lbs. | 52,000 lbs. | 78,000 | 104,000 |
| Rise | 69″ | 69″ | 69″ | 69″ |
| Lifting Cycles | 12-14 per charge at full capacity | 12-14 per charge at full capacity | 12-14 per charge at full capacity | 12-14 per charge at full capacity |
| Column Width | 43″ | 43″ | 43″ | 43″ |
| Approximate Tire Size | 9″- 24″ truck road tires | 9″- 24″ truck road tires | 9″- 24″ truck road tires | 9″- 24″ truck road tires |
| Clearance/Fork to Column | 10″ | 10″ | 10″ | 10″ |
| Speed of Rise | 68 seconds | 68 seconds | 68 seconds | 68 seconds |
| Charging Voltage | 110v-240v 50/60Hz charger | 110v-240v 50/60Hz charger | 110v-240v 50/60Hz charger | 110v-240v 50/60Hz charger |
| Battery Type | NG-24 (2 per column) | NG-24 (2 per column) | NG-24 (2 per column) | NG-24 (2 per column) |
MACH Series _HD View Pages 2015.02
