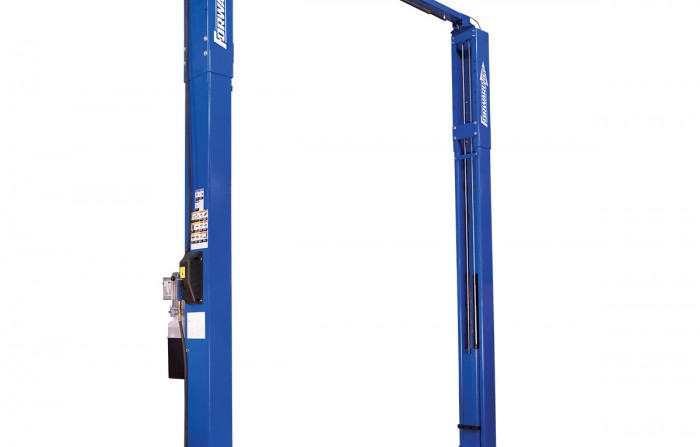

I12PRO Two-Post Lift features Forward’s I12PRO two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward’s spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.
Additional Features:
| Specifications | I12PRO |
| Capacity | 12,000 lbs. (5443kg) |
| Rise | 75-3/4″ (1924mm) |
| Maximum Rise | 80-3/4″ (2051mm) w/ 5″ extension |
| Adjustable Overall Height Options | 166″ (4216mm) Standard Height (i12N300) |
| 178″ (4521mm) Extended Max. Height (i12N301) | |
| 154″ (3912mm) (i12N302) | |
| 143″ (3632mm) (i12N303) | |
| Overall Width | 140″ – 146″ (3556 – 3708mm) |
| Drive Through Clearance | 108-3/4″ (2762mm) or optional |
| 102-3/4″ (2610mm) | |
| Overhead Switch | 160-1/8″ (4067mm) Standard |
| Height Options | 172-1/8″ (4524mm) Extended |
| 148-1/8″ (3762mm) | |
| 137-1/8″ (3483mm) | |
| Front Arm Reach (Min./Max.) | 27-3/4″ min / 59″ max (705mm / 1460mm) |
| Rear Arm Reach (Min./Max.) | 27-3/4″ min / 59″ max (705mm / 1460mm) |
| Lifting Pad Height | 4-3/4″ (121mm) with no extension |
| (Min./Max.) | 9-3/4″ w/ 5″ extension (248mm) |
| Width Between Columns | 120-7/8″ (3070mm) Adjustable |
| 114-7/8″ (2918) Standard | |
| Motor/Phase | 1ph* / 2HP / 50Hz |
| 1ph* / 2HP / 60Hz | |
| Voltage/Amps | 208/230, 15 amps; 208/230, 16 amps |
| Speed of Rise | 60 seconds |
| *Optional 3-phase available | |
