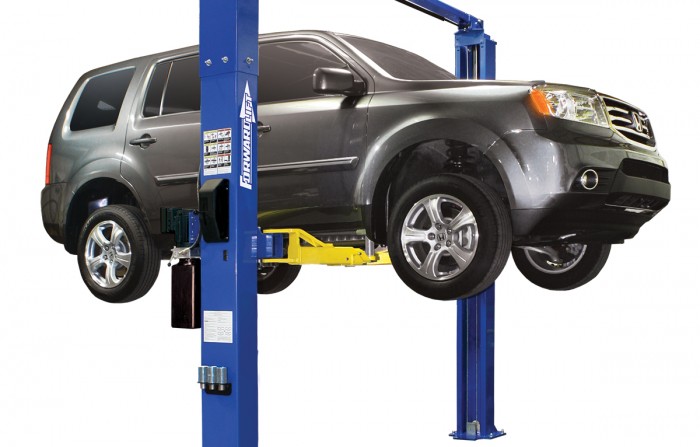

Forward 2 Post Lift I10

Frame engaging rubber padded truck adapters with multiple extensions to raise most vehicles on the road today. Includes four (each) adapter extensions at 3.5″ and 5″. Spot-Rite™ 3-Stage Front Arms to accommodate vehicles both symmetrically and asymmetrically. This feature allows the technician to position the vehicle doors in front of or behind the column to prevent door damage.

Additional Features:

  • 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
  • The I10 has been third party tested by ETL and approved by ALI.
  • 3-stage front arm design enables you to position doors in front of the column or behind to avoid door damage.
  • Adapter storage bracket kit
  • Hydraulic cylinders in each column:
  • Top-mounted | Direct pull lifting technology | Cylinder rod concealed inside the carriage
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications I10N400MBL
Capacity 10,000lbs
Max. Rise w/5″ extension 76-1/4″ (1937mm)
Overall Height 143″ (3632mm)
Overall Width 131″ or optional 137″ (3327mm / 4380mm)
Drive through clearance 99″ or optional 105″ (2515mm / 2667mm)
Overhead switch height 137-5/8″ (3496mm)
Front reach (Min/Max) 23″ / 44-1/2″ (584mm / 1130mm)
Rear reach (Min/Max) 36″ / 58″ (914mm / 1473mm)
Min/Max Adapter Height 3-3/4″ (95mm) no adapter extension
8-3/4″ (222mm) w/5″ adapter extension
Width Inside Column 109″ or optional 115″ (2769mm / 2921mm)
Adapter Heights 3-1/2″and 5″
Voltage/Amps 208 / 230, 15 amps; 208/230, 16 amps
*Optional 3-Phase available.

Lifts available in blue and red

Specifications subject to change without notice or liability
