High Inlet Temperature Dryer

The Champion CRH Series is designed to work with reciprocating air compressors through 30 horsepower, and is ideally suited for body shops, auto service centers and light industrial facilities. The space saving design integrates a refrigerated air dryer and a particle/oil removal filter all in one compact package. There is no need for an additional after-cooler because the CRH Series accepts air directly from your reciprocating compressor. This allows you to receive clean compressed air while saving floor space.

The Saylor-Beall High Inlet Temperature Dryer functions as an after-cooler/separator, refrigerated dryer and filter in one package.  It eliminates the need for separate after-cooler and accepts high temperature air (to 180°F} directly from your air compressor.  The refrigerated dryer removes moisture and eliminates troublesome water from downstream air lines and equipment.  An integral 3 micron filter removes solid contaminates and 60% of oil aerosols (for virtually oil free air add a high efficiency oil removal filter downstream).

Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads

[one_half]

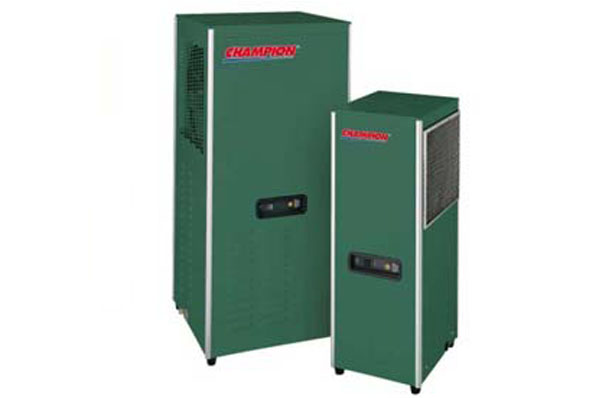

Champion CRH Series

  • Reliable 50° F pressure dew point provides dry air
  • Stainless steel heat exchangers with high heat transfer coefficients allow inlet temperatures to 180° F (82° C) All models feature air-to-air and air-to-refrigerant
    heat exchangers
  • Integral CFF Series Grade B Separator/Filter—removes solid particles to 3 micron
    and oil to 5 ppm
  • Zero air-loss condensate drains with reliable pneumatic operation
  • Environmentally-friendly R407c refrigeration system maintains reliable dew point temperatures automatically Hermetic, nomaintenance refrigeration compressors
  • Fan switch allows operation in low (35° F, 2° C) ambient temperatures
  • Power cord with molded plug
  • Instrumentation has convenient on/off switch for start-up and fault light for system malfunction
  • CSA certified 115 volt models
  • Maintenance kits available for ease of service

[/one_half][one_half]
Saylor-Beall High Inlet Temperature Dryer

  • Compact,highly efficient heat exchangers … no internal mesh to ..heat exchange efficiency increased by creating helix flow paths in counterflow arrangement
  • Two stage separator/filter removes condensed oil and water over a wide range of flows
  • Reliable condensate drain – air operated…automatically discharges water and oil from dryer without air .. no timer to adjust
  • Automatic refrigeration temperature control system maintains precise chilled air temperature – never needs adjusted for load, ambient or seasonal changes – no freeze-ups
  • Fan switch – allows operation in low (35°F, 2°C) ambients, saves energy at low loads
  • Hermetic refrigeration system – requires no maintenance, no adjustments, operates as reliably as your home refrigerator
  • Air reheated to save energy and prevent pipe sweating

[/one_half]
