Forward Scissor Lift FS77

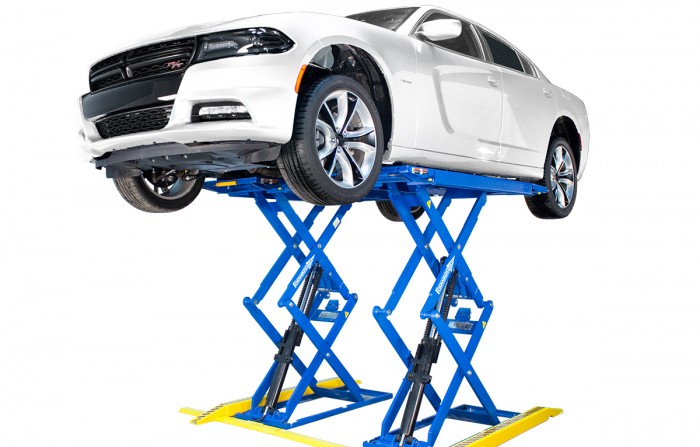

FS77 Scissor Lift features the Forward FS77 7,700 lbs. capacity scissor lift is an engineered low profile small package powerhouse. Taking up less space in a shop is always a plus when you’re looking for a vehicle lift. Standing 4-1/8 inches tall when fully lowered and using less than 44 square feet of space; this lift can be worked around and over while still providing you with shop clearance and cleanliness. This lift can be installed on existing concrete provided it’s adequate for recommended installation, or can be flush mounted for additional clearance. Components of the lift include various metal types to provide high strength, lightweight structure with heavy lifting ability. Couple the additional features below and you’ve just found the perfect lift for quick service and reliability.

Additional Features:

• Patent pending inverse piston synchronizer manifold system synchronizes the platform’s movement
• Provides more positive platform equalization than systems with flow dividers, encoders, string pots, or other feedback devices
• Both platforms stop lowering when one platform is stopped by an obstruction or engaged lock
• Simple design is easy to install, use and maintain
• Low 4 1/8″ collapsed height accommodates lower clearance vehicles
• Reliable, high quality composite bearings reduce required maintenance
• Easy to use control panel with 24 volt DC, non-high voltage switches used
• Open front and rear with no structural connection between platforms or bases increases work area for technician
• Galvanized bottom for corrosion resistance
• Powder coated durable paint finish
• Hinged ramps fold 65 degrees away allowing clearance for wheel work
• Locking ramps increase platform pick-up points
• Ramp rollers protect floors from damage
• Diamond plate ramps increase drive on traction and maintain rubber block positioning

Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications FS77
Capacity 7,700 LBS. (3492kg)
Lifting Height 78-5/8″ (1997mm)
Lowered Height 4-1/8″ (104mm)
Overall Length 85″ (2159mm)
Overall Width 85″ (2159mm)
Runway Width 24-3/4″ (628mm)
Width Between Platforms 23-5/8″ (600mm)
Platform Length (Platform Only) 59″ (1498mm)
Platform with Ramps Length 85-1/16″ (2160mm)
Ramp Length 13″ (330mm)
Electrical Power Single Phase – 4 Hp, 60Hz, 230V
Compressed Air Connection 85-110 psi
Time of Full Rise 39 seconds
