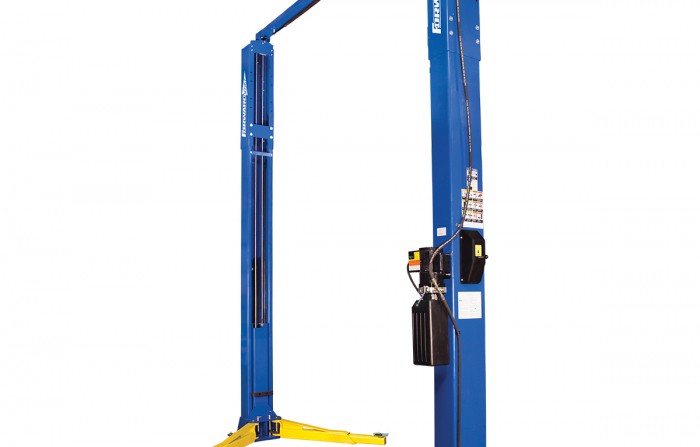

Forward 2 Post Lift F12

F12 Two-Post Lift features includes Forward’s F12 two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks, and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward’s spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.

Additional Features:

  • Hydraulic cylinders in each column
  • Full Stroke
  • Cylinder rod concealed inside carriage
  • 72-1/2″ Rise | 77-1/2″ Rise (With 5″ adapter extensions)
  • 2 Stage Arm Design
  • Overhead cable equalization
  • Single Point lock release
  • Large rubber-padded swivel adapter with extra height extensions (3.5″ and 5″) are standard
  • Spring operated arm restraints, disengage at floor level
  • 2-stage front and rear arms
  • Durable powder coat finish
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications F12
Capacity 12,000 lbs. (5443kg)
Maximum Rise 77-1/2″ (1968mm)
With 5″ adapter extension
Adjustable Overall 166″ (4216mm) Standard Height (F12N300)
Height Options 178″ (4521mm) Extended Max. Height (F12N301)
154″ (3912mm) (F12N302)
143″ (3632mm) (F12N303)
Overall Width 140″ or optional
146″ (3556 / 3708mm)
Drive Through Clearance 102-3/4″ or optional
108-3/4″ (2609 / 2762mm)
Overhead Switch 160-1/8″ (4067mm) Standard
Height Options 172-1/8″ (4524mm) Extended
148-1/8″ (3762mm)
137-1/8″ (3483mm)
Front Arm Reach (Min./Max.) 35″/ 54″ (889 / 1372mm)
Rear Arm Reach (Min./Max.) 35″/ 54″ (889 / 1372mm)
Min./Max. 4-3/4″ (120) w/ no adapter extension
Adapter Height 9-3/4″ (248mm) w/ 5″ adapter extension
Width Inside Column 120-7/8″ (3070mm) Adjustable
114-7/8″ (2918) Standard
Voltage/Amps 208/230, 12 amps; 208/230, 16 amps
Motor/Phase** 1ph*/2HP/50Hz; 1ph*/2HP/60Hz
Ceiling Height Required 168″ (4267mm)
Specifications subject to change without notice or liability.
*Optional 3-phase available at additional cost
