DP18

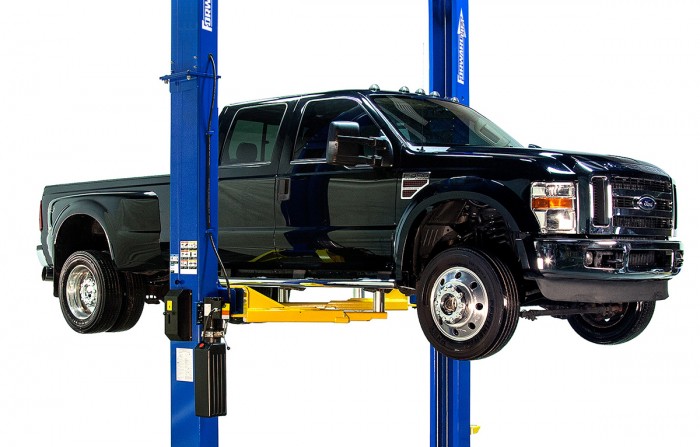

DP18 Heavy Duty Two-Post Lift features the DP18 is constructed of high strength heavy gauge steel columns.  Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift.  With a capacity of 18,000 pounds your shop can start working on work trucks, vans, or small buses along with everything else that rolls through the door.

Truck Adapter Extensions:

  • The DP18 comes with eight high strength aircraft grade aluminum truck adapter extensions. Four 5” and four 10” adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.

Extended Height Model Options:

  • The DP18 offers three different height options, for the lowest ceiling option DP18N000 the overhead cross member mounts directly to the column without a column extension to fit a 155 ¾” (12’-11 ¾”) ceiling height. The standard height DP18N001 fits a 176” (14’-8”) ceiling height and the extended height DP18N002 fits a 200” (16’-8”) ceiling height.  With all these options it’s easy to choose the best package to fit into your existing shop.

Low Profile Arms:

  • Forward’s heavy duty two-post arms feature a low profile adapter engagement area. This allows for greater flexibility of this lift. You’ll be able to encompass more service built around a lift that can handle most trucks and vans. The arms have heavy duty gusseting, are two stage that can easily be extended (61” Length) and retracted (38” Length) while lying on the floor to spot. Couple that with the light adapter extensions and you win the spotting large vehicle battle!

Additional Features:

  • 18,000 lbs. capacity for lifting most trucks and vans.
  • Features symmetrical column design
  • Direct-Pull Lifting – high efficiency, low maintenance technology
  • Closed loop hydraulic system – protect against hydraulic contamination
  • Powder coat paint is more durable than conventional coatings
  • Third party tested and certified by ALI
  • Padded shut-off bar
  • Low profile arms and truck adapters

Single point release lock at operations center

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications DP18N000 DP18N001 DP18N002
Total Capacity 18,000 lbs. (8164kg) 18,000 lbs. (8164kg) 18,000 lbs. (8164kg)
Rise* 83” (2120mm) 83” (2120mm) 83” (2120mm)
Overall Height 154-3/4” (3930mm) 175″ (4445mm) 199” (5054mm)
Height to Shut-Off 147-1/4” (3735mm) 167-1/4″ (4250mm) 191-1/4” (4860mm)
Minimum Ceiling Height 155-3/4” (3956mm) 176″ (4470mm) 200” (5080mm)
Overall Floor Width 154-3/8” (3921mm) 154-3/8” (3921mm) 154-3/8” (3921mm)
Inside Column Width 119-5/8” (3038mm) 119-5/8” (3038mm) 119-5/8” (3038mm)
Drive Through 108-1/4” (2749mm) 108-1/4″ (2750mm) 108-1/4″ (2750mm)
Arm Reach 38” (965mm) 38” (965mm) 38” (965mm)
61” (1549mm) 61” (1549mm) 61” (1549mm)
Minimum Adapter Height 5-1/2” (139mm) 5-1/2” (139mm) 5-1/2” (139mm)
Stackable Adapter Height 10-1/2” (266mm) 10-1/2″ (266mm) 10-1/2″ (266mm)
(Low Extension)
Stackable Adapter Height 15-1/2” (393mm) 15-1/2″ (393mm) 15-1/2″ (393mm)
(High Extension)
Voltage* 208/230v, 20 amps 208/230v, 20 amps 208/230v, 20 amps
Amps 20 20 20
Motor 2 HP/1Ø 2 HP/1Ø 2 HP/1Ø
* Specifications subject to change without notice or liability. *Maximum lifting height with 10” adapters
