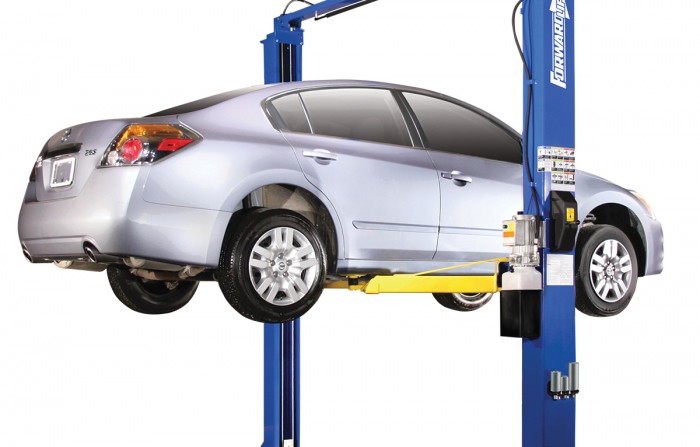

Forward 2 Post Lift DP10A

DP10A Two-Post Lift features include incorporating a low-profile design, the DP10A 10,000 lbs. capacity two-post lift features low-profile/oversized pads with multiple extensions to raise most vehicles on the road today. Includes four (each) adapter extensions: 3.5″ and 5″. Integrating Spot-Rite™ 3-Stage Front Arm Design, the DP10A features offset arms to accommodate vehicles both symmetrically and asymmetrically. This feature allows the technician to position the vehicle doors in front of or behind the column to prevent door damage.

Additional Features:

  • Direct-Pull Lifting – high efficiency, low maintenance technology
  • Closed loop hydraulic system – preventing hydraulic contamination
  • Powder coat, oven baked finish – more durable than conventional coatings
  • Third party tested by ETL and certified by ALI
  • Padded shut-off bar
  • Spring operated arm restraints, disengage at floor level
  • Low profile arms
  • Single point release lock in each column, resets on upstroke
  • Optional high rise and extended height available
  • Door Bumpers standard
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications DP10AN400BL DP10AN422BL (Extended Height Model)
Capacity 10,000 lbs. (4535kg) 10,000 lbs. (4535kg)
Max. Rise w/5″ extension 76-1/4″ (1937mm) 79-3/4″ (2025mm)
Overall Height 143″ (3632mm) 166-3/8″ (4226mm)
Overall Width 131″ or optional 137″ (3327mm / 4380mm) 131″ or optional 137″ (3327mm / 4380mm)
Drive Through Clearance 99″ or optional 105″ (2515mm / 2667mm) 99″ or optional 105″ (2515mm / 2667mm)
Overhead Switch Height 137-5/8″ (3496mm) 160-3/4″ (4083mm)
Front Reach 23″- 44-1/2″ (584mm – 1130mm) 23″- 44-1/2″ (584mm – 1130mm)
Rear Reach 36″- 58″ (914mm – 1473mm) 36″- 58″ (914mm – 1473mm)
Min/Max Adapter Height 3-3/4″ (95mm) no adapter extension 3-3/4″ (95mm) no adapter extension
8-3/4″ (222mm) w/5″ adapter extension 8-3/4″ (222mm) w/5″ adapter extension
Width Inside Column 109″ or optional 115″ (2769mm / 2921mm) 109″ or optional 115″ (2769mm / 2921mm)
Voltage 208/230, 15 amps; 208/230, 16 amps 208/230, 15 amps; 208/230, 16 amps
Motor 1ph/2HP/60Hz 1ph/2HP/60Hz
Ceiling Height Required 144″ (3658mm) 167″ (4242mm)
Lifts are available in blue and red.
Specifications subject to change without notice or liability.
