CRA14

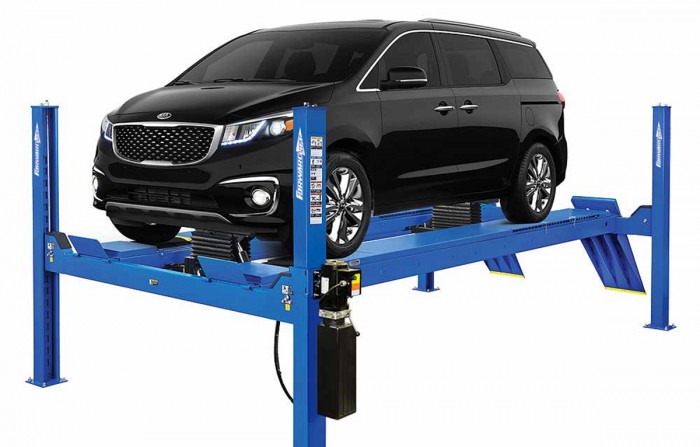

CRA14 Alignment Four-Post Lift features includes the foundation of a CRA14 14,000 lbs. capacity Forward four-post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area; tucked out of the way for a clean finish however easily accessible for inspection when needed. Forward Lift offers a durable powder coated hammer tone paint finish on its lifts. Our four-post lifts have a multi-position lock component which allows any four-post lift to be level at any lock position. Self chocking approach ramps and wheel chocks come standard with the CRA14.

Additional Features:

  • Heavy duty hydraulic cylinder
  • Internal airline standard
  • Single Point latch release system
  • One piece formed runway design incorporates rolling jack channels
  • Multiple position latch points in each structural leg
  • Rear wheel slip plates standard
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications CRA14N201Y Differences
Capacity 14,000 lbs. (6350kg)
Max. Wheelbase 182-1/2″ (4635mm) <32-1/2″>
Max. Two Wheel Alignment 166-1/4″ (4225mm) <33″>
Max. Four Wheel Alignment 157″ (3987.8mm) <15-1/4″>
Min. Four Wheel Alignment 88″ (2235mm)
Rise 80-3/4″(2000mm)
Length Overall 20′ 10″ (6350mm)
Width Overall 10′ 11-3/4″ (3346mm)
Inside Columns 116-1/4″ (2953mm)
Between Front and Rear Columns 195-1/4″ (4959mm) <33″>
Height of Columns 7′ 6-1/2″ (2281mm)
Width of Runways 20″ (508mm)
Height of Runways 9″ (228mm)
Width Between Runways 43″ (1092mm) or 46″(1168mm)
Time of Full Rise 72 seconds
Voltage Single Phase* 208v-230v
