CR30

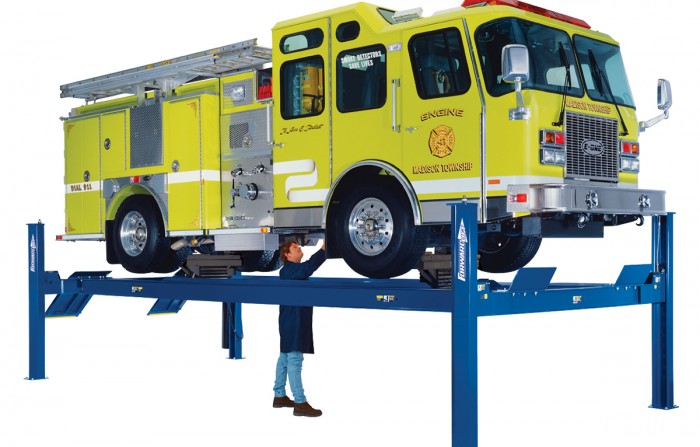

CR30 Four-Post Lift features 30,000 lbs. capacity 4-post lift. “Think big, then lift big,” Forward thinkers say!

Additional Features:

  • Self chocking approach ramps in the rear
  • Single point latch release system
  • Multi-position lock components
  • All hydraulics and mechanical lifting components concealed under runway
  • Internal airline standard
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications CR30
Capacity 30,000 (12701 kg)
Maximum Wheelbase 271″/307″
Lifting Height 68″ (1727mm)
Overall Length 28′-8-1/8″/31′-8-1/8″
Overall Width 12′-4-13/16″
Width Inside Columns 132″ (3353mm)
Length Between Columns 285″/321″
Overall Height 7′-3/4″
Runway Width 24″ (610mm)
Runway Height 8-3/8″ (213mm)
Width Between Runways 41″ – 48″ (1041mm – 1219mm)
Rise Time* 105 seconds
Voltage* 208/230v
Amps 20
Motor 4HP
Minimum Bay Size 16′ X 33′
* single phase standard; 3-phase available at additional cost
