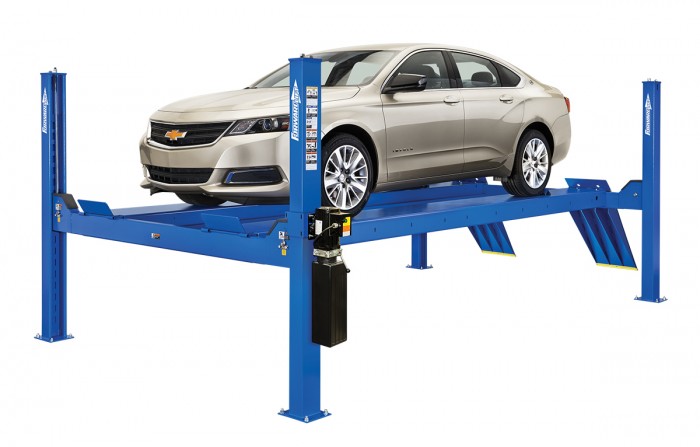

CR14 Four-Post Lift features are designed to meet the service needs of today’s cars, vans, and trucks with 14,000 lbs. capacity!
Taller column design adds an 79″ rise height providing techs better vehicle service access. This coupled with the multi-position lock components keeps your shop flexible. A new improved heavy duty high-performance cable and sheaves system conveniently concealed under the runway – this heavy duty system allows for greater capacity and durability. Tucked under the lift this system remains accessible for quick inspections yet doesn’t pose a snag issue while working. Durable powder coat finish ensures your lift will continue to look good for years of service. Self-chocking approach ramps engage when lift is raised – protective strips on ramps prevent floor gouging. All Forward products are proof load tested to 1½ times rated capacity! The combination of high quality products and service provides you with the very best value – while not compromising safety, functionality or durability.
|Total Capacity||9,000 lbs. (4082kg)|
|Overall Height||111-1/4″ (2826mm)|
|Overall Width||138-1/2″ (3518mm)|
|Rise With Extensions||80-1/2″ (2045mm)|
|Rise Without Extensions||72″ (1829mm)|
|Drive Through Clearance||97-1/4″ (2470mm)|
|Width Inside Columns||111″ (2819mm)|
|Arm Reach (Min./Max.)||30″/46-1/4″ (762mm/1174mm)|
|Minimum Adapter Height||4-1/2″” (114mm)|
|Drive-Over Height||1-1/2″ (38mm)|
|Voltage/Amps||208/230, 20 Amps|
|Motor||2 HP/1Ø* (38mm)|
|Minimum Ceiling Height||113″ (2870mm)|
|*Optional 3-Phase available.|
