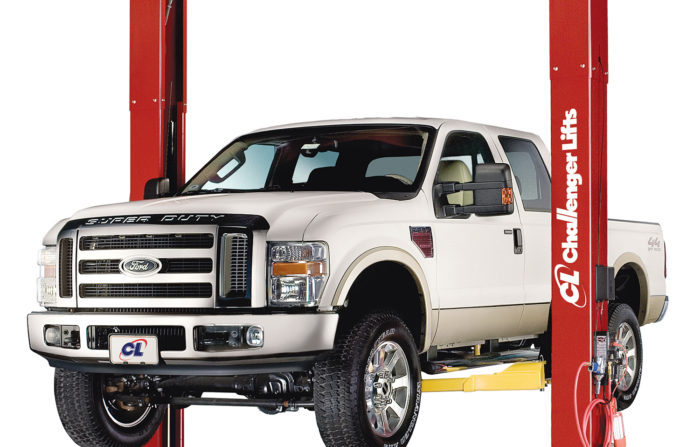

Challenger Lifts 2-Post Lift CL10V3

Challenger Lifts 2-Post Lift 10,000lb Capacity:

Challenger’s CL10V3 model features our exclusive Versymmetric® technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT™ design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.

We also offer the CL10V3 in several configurations to meet your service application needs. A drive-on pad option provides the quickest vehicle spotting for express bays. Our added Quick Cycle™ models can rise in just 27 seconds and lower in only 17 seconds. Quick Cycle™ technology’s increased lift speed will drastically boost your service potential. Adjustable height and width options are also available. In addition, choose between a wide range of accessories to make the CL10V3 the perfect choice for your shop. Expand your service potential with our most versatile, easy-to-operate lift.

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads

CL10V3 2-Post Lift Features:

• 10,000 lb. lift capacity
• Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
• Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
• 48 in. elongated carriage design increases lift life
• Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
• Padded overhead shut off system prevents vehicle damage
• Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
• Fully gusseted base plate design increases column rigidity
• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
• Premium powder coat finish provides long-lasting durability

Footpad Accessories
• B2280PR NEW wide frame footpad
• CLXP9 Low-profile Express Service Pad
• 10300 Pair of luxury car adapters
• 10313 Pair of 6 in. stack adapter extensions
• 10315 Stack adapter kit – includes (4) 3 in. Stack Extensions, (2) 6 in. Stack Extensions & (2) Organizer Racks with hardware
• 10316 Organizer rack for stack adapter extensions
• B2260 Round rubber-style double screw foot pad assembly. For use on 10k 2-post lifts only, 2,500 lb capacity per footpad.

Productivity Accessories
• B10264A Air/electric workstation with filter/lubricator/regulator
• B99700 Tire Tool Manager Work Station with filter/lubricator/regulator
• TR-07 Turf Rail Quick Change Attachment

Power Upgrades
• 3PH217 Power Unit Upgrade to 3-Phase – 208V
• 3PH239 Power Unit Upgrade to 3-Phase – 230V
• 3PH469 Power Unit Upgrade to 3-Phase – 460V

Tech Spec:
