AR18

When it comes to two and four-wheel alignment services, the AR18 can handle a wheelbase range from 63″ up to 177″ and is compatible with new technology alignment systems on the market today. With a lifting capacity of 18,000 lbs., technicians can service cars, vans, trucks – even many medium and heavy duty commercial vehicles with ease. Standard color of lifts are blue and red.

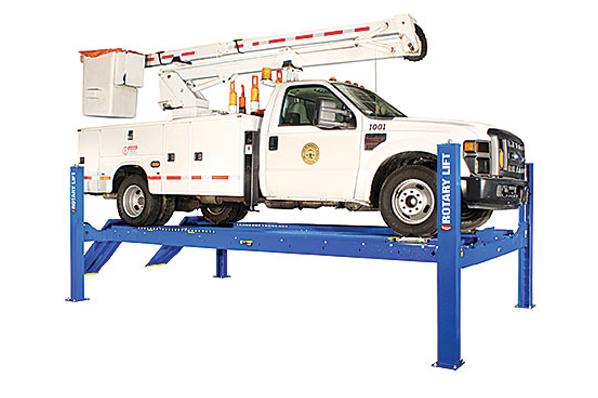

AR18 Heavy Duty Four Post Drive-On Alignment Lift

  • Versatility
  • Single Point Release Air-Locks
  • Automatic Ramp Chocks
  • Internal Airline Connections
  • Stainless Steel Turning Radius Gauges

ALI Gold Certified (AR18LO-X)

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications AR18 AR18EL
Max. Wheelbase 194″ 230″
Max. Two Wheel Alignment 177″ 213″
Min/Max 4 Wheel Alignment 63″ – 162″ 63″ – 198″
Rise / Floor to top of runway 70″ 70″
Length Overall 274″ 310″
Width Overall 137 11/16″ 137 11/16″
Inside of Columns 122″ 122″
Between Columns 212″ 248″
Height of Columns 6′ 5 3/4″ 6′ 5 3/4″
Width of Runways 22″ 22″
Height of Runways 7 1/2″ 7 1/2″
Width Between Runways (min./max) 43″ – 46″ 43″ – 46″
Lift Capacity 18,000 lbs. 18,000 lbs.
Motor 2 HP 2 HP
Voltage Single Phase* 208v-230v 208v-230v
Time of Full Rise 80 seconds 80 seconds
Min. Bay Size 13’ x 27’ 13’ x 30’
