The quick service pad lift includes time saving features that help get your customers in and out fast with efficient, no-appointment necessary maintenance and routine service. The ultra-low profile, easy to adjust pad minimizes drive-over clearance and allows vehicles to be spotted quickly, easily and accurately.

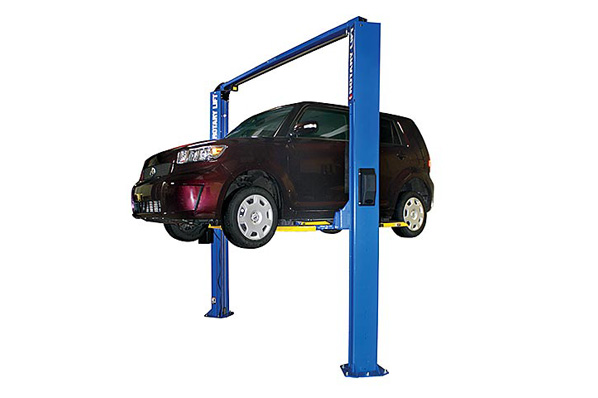

The standard SPOA7-MP two-post features true asymmetric, “Double S” columns for easy door opening and added strength, a padded overhead shut off bar and rugged, time tested construction.

And it’s only from Rotary Lift. Make sure your lifts are Gold Certified!

It takes a combination of the right design, engineering excellence and quality manufacturing to earn this certification. It is extra assurance for you that your lift meets the highest industry safety and performance standards. Look for the Gold Label!


Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications SPOA7-MPSW
Adapters Moveable Pad
Lifting Capacity 7,000 lbs.
Lifting Capacity (per platform) 3,500 lbs.
Rise 74”-77”
Width Overall 11’ 5 3/8”
Floor to Top of Overhead Standard 11’ 8 1/2”
Floor to Top of Overhead EH1 12′ 8 1/2″
Floor to Top of Overhead EH2 13’ 8 1/2”
Cylinder at Full Rise Standard N/A
Cylinder at Full Rise Extended Option 12’ 4 3/4”
Width Between Columns 107” 1/4”
Floor to Overhead Switch 11’ 2 3/4”
Drive Over Clearance 2 5/8”
Drive-Thru Clearance 79”
Outside of Pad to Outside of Pad 78 1/2”
Inside of Pad to Inside of Pad 37 1/8”
Pad Length Overall Retracted 70 13/16”
Pad Length Overall Extended 86 13/16”
Minimum Distance Between Pads 39 9/16”
Maximum Distance Between Pads 55 9/16”
Motor Performance 5 HP
Voltage Single Phase 110/120v
Speed of Rise 25 seconds
