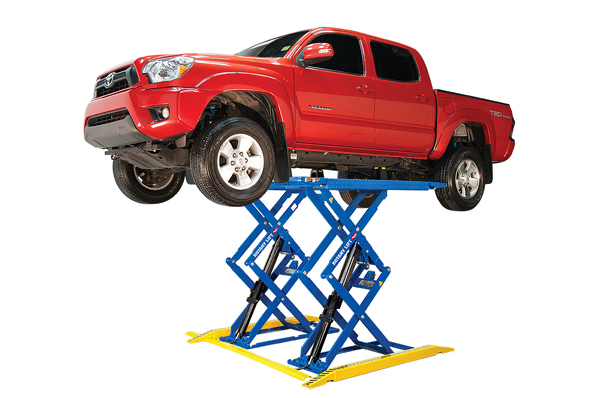

Rotary Runway Scissor Lift RPL77

Best suited for quick service, fast repair work, or shops with small spaces, this engineered lightweight lifting scissor structure will last you for years to come. A low profile design allows vehicles to pass over the lift platform with ease. Folding ramps with rollers provide perfect runway access for vehicles spotting. Ramps fold away to 65 degrees offering better access when wheel work is performed.

Extra wide platforms provide plenty of clearance driving on and off the lift; which allows for a variety of pickup points to handle many of today’s vehicles. Technicians will benefit from the extra headroom this lift provides at over 78 inches in height when installed above ground. Incorporated locking system at each platform cylinder provides worry free use and peace of mind.

All critical parts are housed in a sleek console taking up less than 2 square feet of floor space. In-set air filter and regulator assemblies reside outside the console for easy access. 12 feet of standard hose along with included covers, gives you a variety of console locations.

Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specification RLP77
Capacity 7,700 LBS.
Rise 78-5/8″
Lowered Height 4-1/8″
Overall Length 85″
Overall Width* 85″
Runway Width 24-3/4″
Width Between Platforms* 23-5/8″
Platform Length 59″
Motor/Voltage Single Phase – 4 Hp, 60Hz, 230V
Single Phase – 4 Hp, 50Hz, 230V
Three Phase – 4 Hp, 50/60Hz, 230/460V
Compressed Air Connection 85-110 psi
Time of Full Rise 39 seconds
